Hands-on Ex5

Getting Started:

1. Visualising and Analysing Text Data

1. Understand the tidytext framework: Learn how it simplifies the processing, analysis, and visualization of text data.
2. Master importing techniques: Write functions to efficiently import multiple files into R. Merge data seamlessly: Combine multiple files into a single, coherent data frame.
3. Clean and manipulate text data: Utilize the tidyverse approach to streamline your text data wrangling.
4. Create engaging visualizations: Generate captivating Word Clouds to visualize key words.
5. Calculate TF-IDF: Compute Term Frequency-Inverse Document Frequency using tidytext methods.
6. Explore text relationships: Visualize the connections between texts and terms to gain deeper insights.

1.2 R Packages

The following R packages for handling, processing, wrangling, analysing and visualising text data will be used:

• 1. tidytext, tidyverse (mainly readr, purrr, stringr, ggplot2)
  2. widyr
  3. wordcloud and ggwordcloud
  4. textplot (required igraph, tidygraph and ggraph, )
  5. DT
  6. lubridate and hms

The code chunk:

pacman::p_load(tidytext, widyr, wordcloud, DT, ggwordcloud, textplot, lubridate, hms,
tidyverse, tidygraph, ggraph, igraph)

1.3 Load Data

news20 <- "chap29/20news"

1.4 Define a function to read all files from a folder into a data frame

read_folder <- function(infolder) {
  tibble(file = dir(infolder,
                    full.names = TRUE)) %>%
    mutate(text = map(file,
                      read_lines)) %>%
    transmute(id = basename(file),
              text) %>%
    unnest(text)
}

2. Importing Multiple Text Files from Multiple Folders

2.1 Reading in all the messages from the 20news folder

raw_text <- tibble(folder =
                     dir(news20,
                         full.names = TRUE)) %>%
  mutate(folder_out = map(folder,
                          read_folder)) %>%
  unnest(cols = c(folder_out)) %>%
  transmute(newsgroup = basename(folder),
            id, text)
write_rds(raw_text, "chap29/news20.rds")

Things to learn from the code chunk above:

• read_lines() of readr package is used to read up to n_max lines from a file.
• map() of purrr package is used to transform their input by applying a function to each element of a list and returning an object of the same length as the input.
• unnest() of dplyr package is used to flatten a list-column of data frames back out into regular columns.
• mutate() of dplyr is used to add new variables and preserves existing ones;
• transmute() of dplyr is used to add new variables and drops existing ones.
• read_rds() is used to save the extracted and combined data frame as rds file for future use.

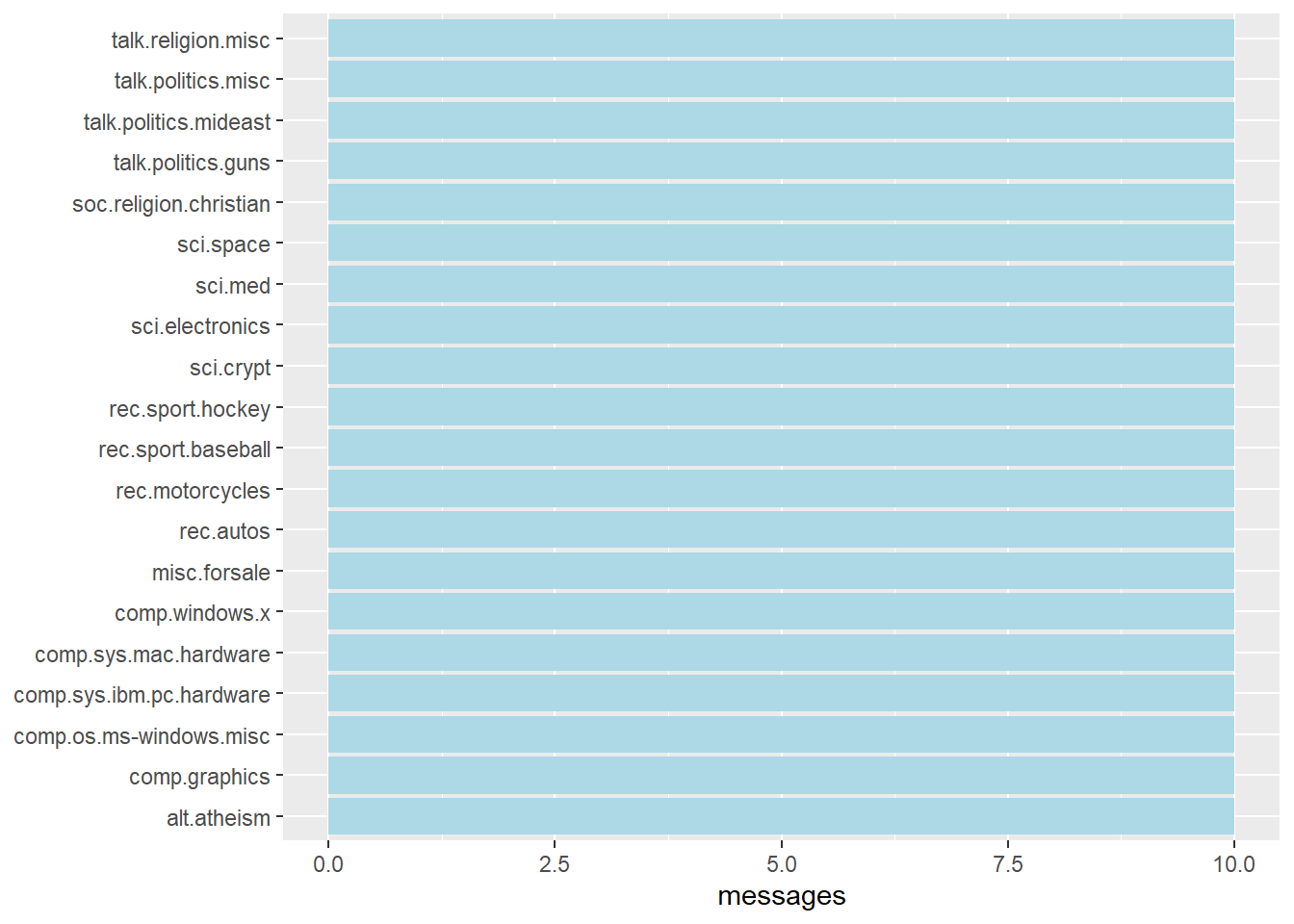

2.2 Initial EDA

The code chunk:

news20 <- readRDS("chap29/news20.rds")
raw_text <- news20
raw_text %>%
  group_by(newsgroup) %>%
  summarize(messages = n_distinct(id)) %>%
  ggplot(aes(messages, newsgroup)) +
  geom_col(fill = "lightblue") +
  labs(y = NULL)

3. tidytext

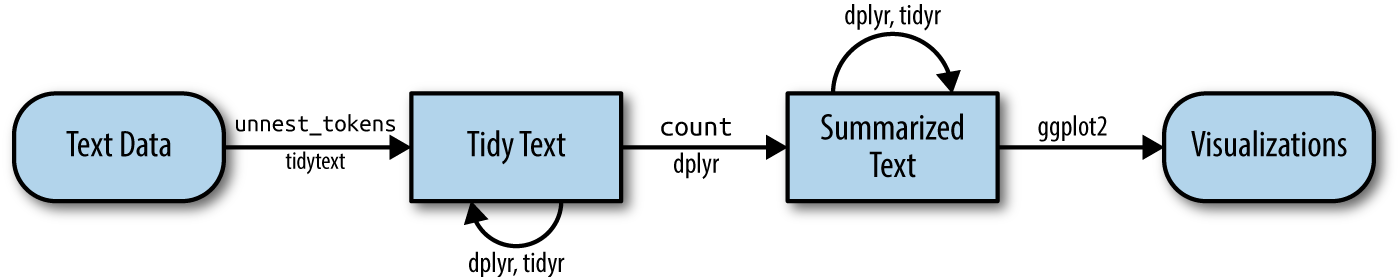

• Using tidy data principles in processing, analysing and visualising text data.
• Much of the infrastructure needed for text mining with tidy data frames already exists in packages like ‘dplyr’, ‘broom’, ‘tidyr’, and ‘ggplot2’. Figure below shows the workflow using tidytext approach for processing and visualising text data.

3.1 Removing header and automated email signatures

Notice that each message has some structure and extra text that we don’t want to include in our analysis. For example, every message has a header, containing field such as “from:” or “in_reply_to:” that describe the message. Some also have automated email signatures, which occur after a line like “–”.

library(stringr)
cleaned_text <- raw_text %>%
  group_by(newsgroup, id) %>%
  filter(cumsum(text == "") > 0,
         cumsum(str_detect(text, "^--")) == 0) %>%
  ungroup()

Things to learn from the code chunk:

• cumsum() of base R is used to return a vector whose elements are the cumulative sums of the elements of the argument.

• str_detect() from stringr is used to detect the presence or absence of a pattern in a string.

3.2 Removing lines with nested text representing quotes from other users.

In this code chunk below, regular expressions are used to remove with nested text representing quotes from other users.

cleaned_text <- cleaned_text %>%
  filter(str_detect(text, "^[^>]+[A-Za-z\\d]")
         | text == "",
         !str_detect(text,
                     "writes(:|\\.\\.\\.)$"),
         !str_detect(text,
                     "^In article <")
  )

Things to learn from the code chunk:

• str_detect() from stringr is used to detect the presence or absence of a pattern in a string.
• filter() of dplyr package is used to subset a data frame, retaining all rows that satisfy the specified conditions.

3.3 Text Data Processing

n this code chunk below, unnest_tokens() of tidytext package is used to split the dataset into tokens, while stop_words() is used to remove stop-words.

usenet_words <- cleaned_text %>%
  unnest_tokens(word, text) %>%
  filter(str_detect(word, "[a-z']$"),
         !word %in% stop_words$word)

Now that we’ve removed the headers, signatures, and formatting, we can start exploring common words. For starters, we could find the most common words in the entire dataset, or within particular newsgroups.

usenet_words %>%
  count(word, sort = TRUE)

# A tibble: 5,542 × 2
   word           n
   <chr>      <int>
 1 people        57
 2 time          50
 3 jesus         47
 4 god           44
 5 message       40
 6 br            27
 7 bible         23
 8 drive         23
 9 homosexual    23
10 read          22
# ℹ 5,532 more rows

Instead of counting individual word, you can also count words within by newsgroup by using the code chunk below.

words_by_newsgroup <- usenet_words %>%
  count(newsgroup, word, sort = TRUE) %>%
  ungroup()

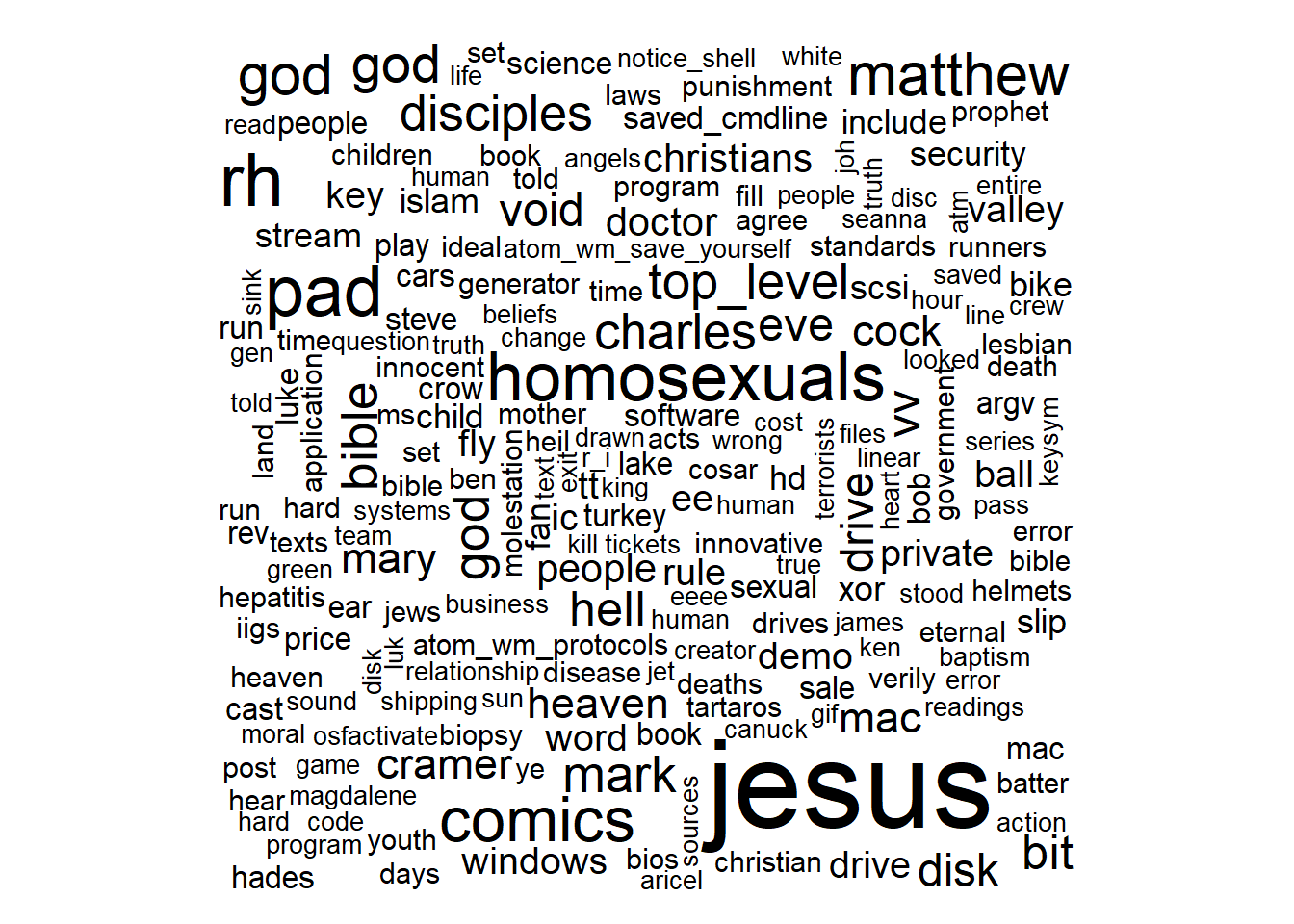

3.4 Visualising Words in newsgroups

In this code chunk below, wordcloud() of wordcloud package is used to plot a static wordcloud.

wordcloud(words_by_newsgroup$word,
          words_by_newsgroup$n,
          max.words = 300)

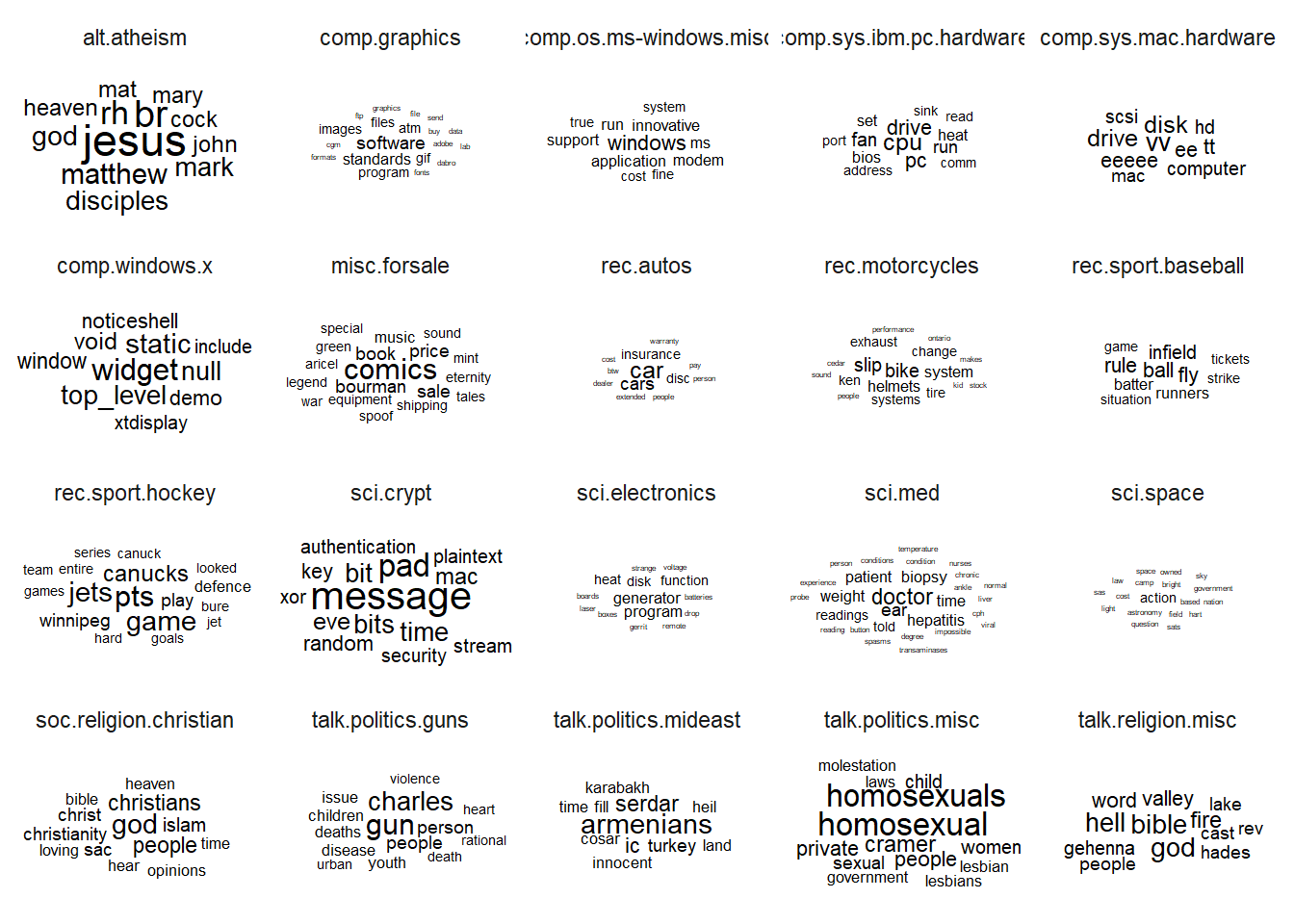

3.5 Visualising Words in newsgroups

The wordcloud below is plotted by using ggwordcloud package.

The code chunk used:

set.seed(1234)

max_words_per_cloud <- 10  # Set the maximum number of words per cloud

words_by_newsgroup %>%
  filter(n > 0) %>%
  group_by(newsgroup) %>%
  slice_max(order_by = n, n = max_words_per_cloud) %>%
  ggplot(aes(label = word,
             size = n)) +
  geom_text_wordcloud() +
  theme_minimal() +
  facet_wrap(~newsgroup)

3.6 Basic Concept of TF-IDF

tf–idf, short for term frequency–inverse document frequency, is a numerical statistic that is intended to reflect how important a word is to a document in a collection of corpus.

3.6.1 Computing tf-idf within newsgroups

The code chunk below uses bind_tf_idf() of tidytext to compute and bind the term frequency, inverse document frequency and ti-idf of a tidy text dataset to the dataset.

tf_idf <- words_by_newsgroup %>%
  bind_tf_idf(word, newsgroup, n) %>%
  arrange(desc(tf_idf))

3.6.2 Visualising tf-idf as interactive table

Table below is an interactive table created by using datatable().

3.6.3 Visualising tf-idf as interactive table

The code chunk below uses datatable() of DT package to create a html table that allows pagination of rows and columns.

DT::datatable(tf_idf, filter = 'top') %>%
  formatRound(columns = c('tf', 'idf',
                          'tf_idf'),
              digits = 3) %>%
  formatStyle(0,
              target = 'row',
              lineHeight='25%')

Things to learn from the code chunk:

• filter() argument is used to turn control the filter UI.

• formatRound() is used to customise the values format. The argument digits define the number of decimal places.

• formatStyle() is used to customise the output table. In this example, the arguments target and lineHeight are used to reduce the line height by 25%.

To learn more about customising DT’s table, visit this link.

3.7 Visualising tf-idf within newsgroups Facet bar charts technique is used to visualise the tf-idf values of science related newsgroup.

The code chunk used to prepare the plot.

tf_idf %>%
  filter(str_detect(newsgroup, "^sci\\.")) %>%
  group_by(newsgroup) %>%
  slice_max(tf_idf,
            n = 12) %>%
  ungroup() %>%
  mutate(word = reorder(word,
                        tf_idf)) %>%
  ggplot(aes(tf_idf,
             word,
             fill = newsgroup)) +
  geom_col(show.legend = FALSE) +
  facet_wrap(~ newsgroup,
             scales = "free") +
  labs(x = "tf-idf",
       y = NULL)

4. Counting and correlating pairs of words with the widyr package

• To count the number of times that two words appear within the same document, or to see how correlated they are.

• Most operations for finding pairwise counts or correlations need to turn the data into a wide matrix first.

• widyr package first ‘casts’ a tidy dataset into a wide matrix, performs an operation such as a correlation on it, then re-tidies the result.

In this code chunk below, pairwise_cor() of widyr package is used to compute the correlation between newsgroup based on the common words found.

newsgroup_cors <- words_by_newsgroup %>%
  pairwise_cor(newsgroup,
               word,
               n,
               sort = TRUE)

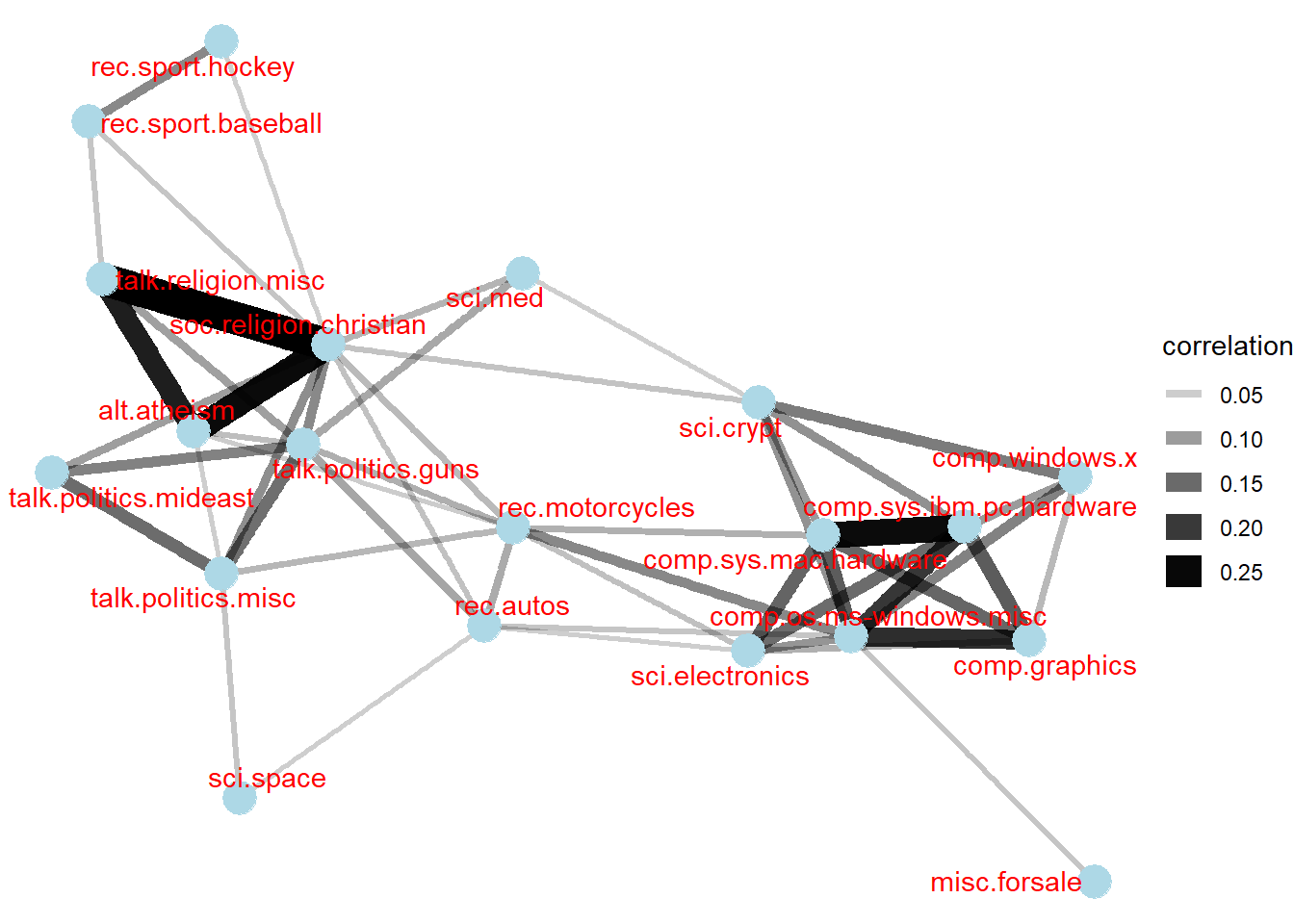

5. Visualising correlation as a network

Now, we can visualise the relationship between newgroups in network graph as shown below.

The code chunk:

set.seed(2017)

newsgroup_cors %>%
  filter(correlation > .025) %>%
  graph_from_data_frame() %>%
  ggraph(layout = "fr") +
  geom_edge_link(aes(alpha = correlation,
                     width = correlation)) +
  geom_node_point(size = 6,
                  color = "lightblue") +
  geom_node_text(aes(label = name),
                 color = "red",
                 repel = TRUE) +
  theme_void()

6. Bigram

In this code chunk below, a bigram data frame is created by using unnest_tokens() of tidytext.

bigrams <- cleaned_text %>%
  unnest_tokens(bigram,
                text,
                token = "ngrams",
                n = 2)

bigrams

# A tibble: 28,827 × 3
   newsgroup   id    bigram
   <chr>       <chr> <chr>
 1 alt.atheism 54256 <NA>
 2 alt.atheism 54256 <NA>
 3 alt.atheism 54256 as i
 4 alt.atheism 54256 i don't
 5 alt.atheism 54256 don't know
 6 alt.atheism 54256 know this
 7 alt.atheism 54256 this book
 8 alt.atheism 54256 book i
 9 alt.atheism 54256 i will
10 alt.atheism 54256 will use
# ℹ 28,817 more rows

6.1 Counting Bigrams

The code chunk is used to count and sort the bigram data frame ascendingly.

bigrams_count <- bigrams %>%
  filter(bigram != 'NA') %>%
  count(bigram, sort = TRUE)

bigrams_count

# A tibble: 19,888 × 2
   bigram       n
   <chr>    <int>
 1 of the     169
 2 in the     113
 3 to the      74
 4 to be       59
 5 for the     52
 6 i have      48
 7 that the    47
 8 if you      40
 9 on the      39
10 it is       38
# ℹ 19,878 more rows

6.2 Cleaning Bigram

The code chunk below is used to seperate the bigram into two words.

bigrams_separated <- bigrams %>%
  filter(bigram != 'NA') %>%
  separate(bigram, c("word1", "word2"),
           sep = " ")

bigrams_filtered <- bigrams_separated %>%
  filter(!word1 %in% stop_words$word) %>%
  filter(!word2 %in% stop_words$word)

bigrams_filtered

# A tibble: 4,607 × 4
   newsgroup   id    word1        word2
   <chr>       <chr> <chr>        <chr>
 1 alt.atheism 54256 defines      god
 2 alt.atheism 54256 term         preclues
 3 alt.atheism 54256 science      ideas
 4 alt.atheism 54256 ideas        drawn
 5 alt.atheism 54256 supernatural precludes
 6 alt.atheism 54256 scientific   assertions
 7 alt.atheism 54256 religious    dogma
 8 alt.atheism 54256 religion     involves
 9 alt.atheism 54256 involves     circumventing
10 alt.atheism 54256 gain         absolute
# ℹ 4,597 more rows

6.3 Counting the bigram again

bigram_counts <- bigrams_filtered %>%
  count(word1, word2, sort = TRUE)

6.4Create a network graph from bigram data frame

In the code chunk below, a network graph is created by using graph_from_data_frame() of igraph package.

bigram_graph <- bigram_counts %>%
  filter(n > 3) %>%
  graph_from_data_frame()
bigram_graph

IGRAPH af4128a DN-- 40 24 --
+ attr: name (v/c), n (e/n)
+ edges from af4128a (vertex names):
 [1] 1          ->2           1          ->3           static     ->void
 [4] time       ->pad         1          ->4           infield    ->fly
 [7] mat        ->28          vv         ->vv          1          ->5
[10] cock       ->crow        noticeshell->widget      27         ->1993
[13] 3          ->4           child      ->molestation cock       ->crew
[16] gun        ->violence    heat       ->sink        homosexual ->male
[19] homosexual ->women       include    ->xol         mary       ->magdalene
[22] read       ->write       rev        ->20          tt         ->ee

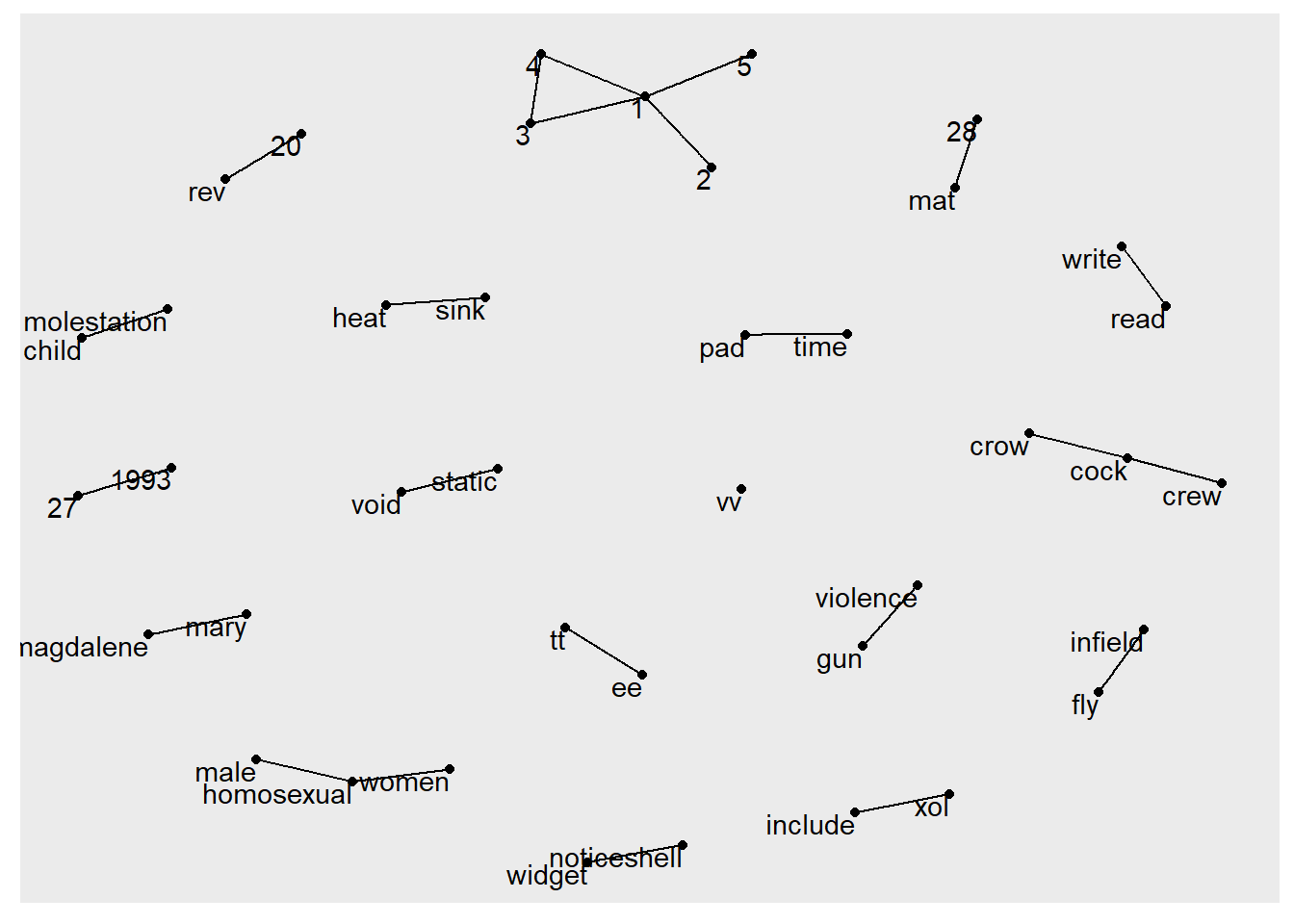

6.5 Visualizing a network of bigrams with ggraph

In this code chunk below, ggraph package is used to plot the bigram.

The code chunk used to plot the network graph:

set.seed(1234)

ggraph(bigram_graph, layout = "fr") +
  geom_edge_link() +
  geom_node_point() +
  geom_node_text(aes(label = name),
                 vjust = 1,
                 hjust = 1)

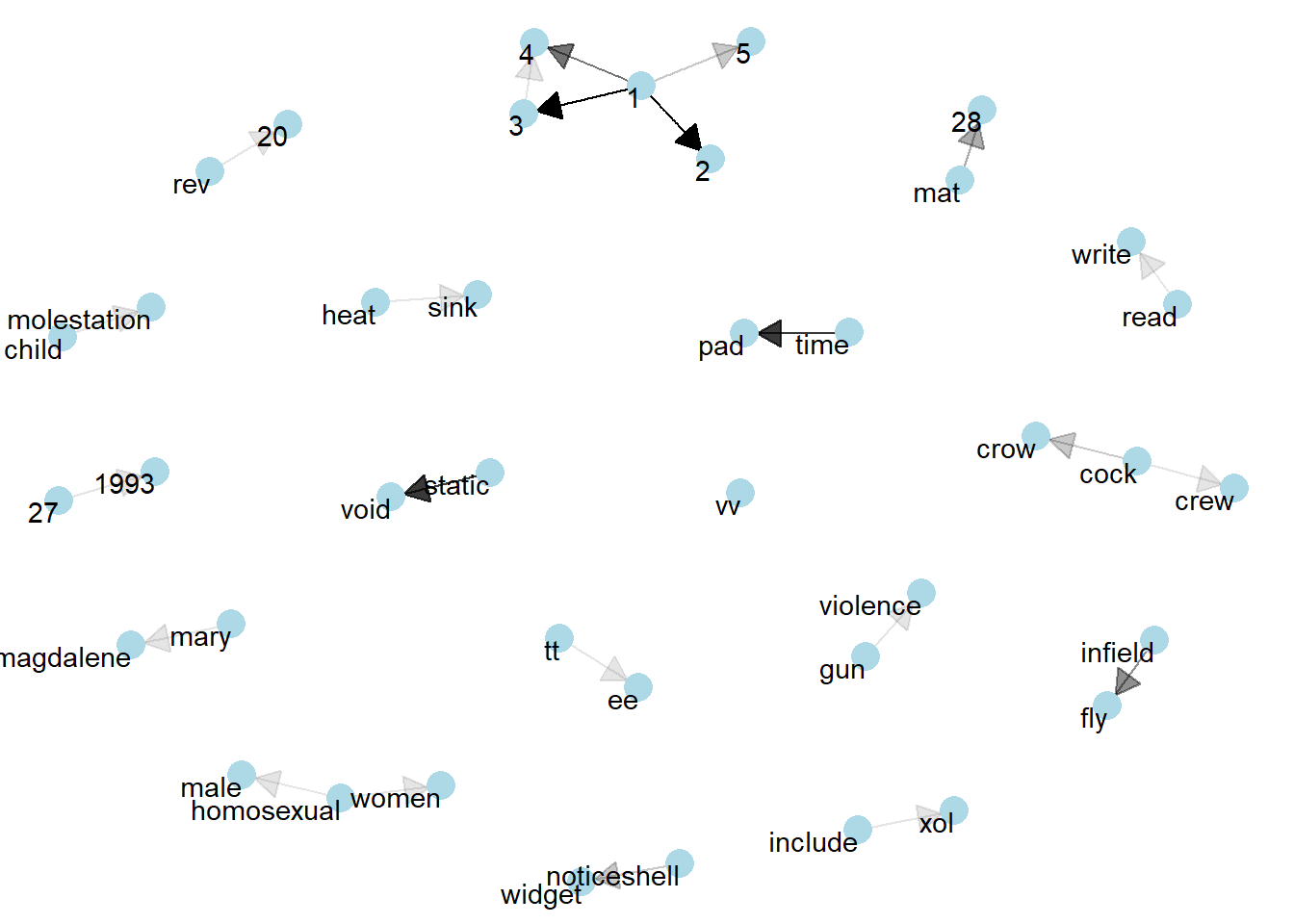

6.6 Revisied Version

The code chunl used to plot the network graph.

set.seed(1234)

a <- grid::arrow(type = "closed",
                 length = unit(.15,
                               "inches"))

ggraph(bigram_graph,
       layout = "fr") +
  geom_edge_link(aes(edge_alpha = n),
                 show.legend = FALSE,
                 arrow = a,
                 end_cap = circle(.07,
                                  'inches')) +
  geom_node_point(color = "lightblue",
                  size = 5) +
  geom_node_text(aes(label = name),
                 vjust = 1,
                 hjust = 1) +
  theme_void()
